Double layer capacitor module

Double layer capacitor module

  • Cname:Super capacitor module
  • Views:Times
  • Release date:2024-01-04 13:40:02
  • Content
  • Features
  • Parameter

Product Introduction:

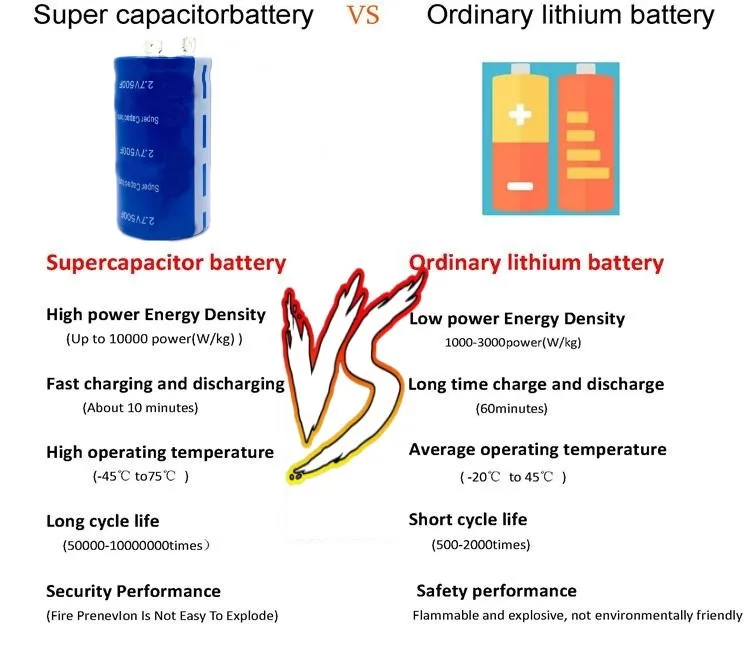

           Double layer capacitor modules, also known as supercapacitors, gold capacitors, or Faraday capacitors, store energy through polarized electrolytes. They are an electrochemical component, but there is no chemical reaction during their energy storage process. This energy storage process is reversible, and because of this, supercapacitors can be charged and discharged hundreds of thousands of times. At the same time, supercapacitors are a new type of green and environmentally friendly energy storage device (activated carbon), which has extremely high efficiency High current capacity, wide voltage range, wide temperature range, long winding service life, long working life, maintenance free and easy to maintain, simple integration, low cost, and other superior characteristics.

Product specifications:

Specification
features
Specification
Nominal voltage
16V
capacity
83f
Capacity error range
0%~10%
DCIR
0.5mΩ
Working current(15℃)
120A
Maximum peak current
1500A
energy (wh)
2.95
Storage temperature
-40℃~+70℃
energy
5.5Wh
Operating temperature range
-40 ℃ ~ 65℃
Storage temperature range
-40℃~+65℃
weight
0.32KG
Number of monomers (support)
6
Single balancing method
active balancing
Cycle life (times)
≥500000
Product Description


product application
It is widely used in energy storage system, large UPS, military electronic equipment, variable wind propeller, energy-saving elevator, portable electric tool and vehicle starting
