Start the supercapacitor

Start the supercapacitor

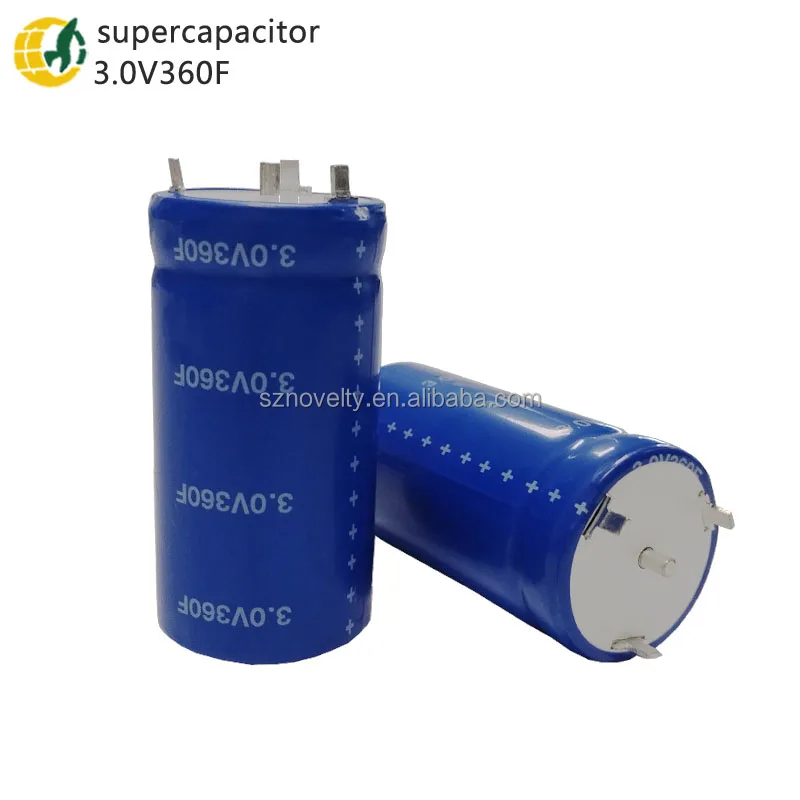

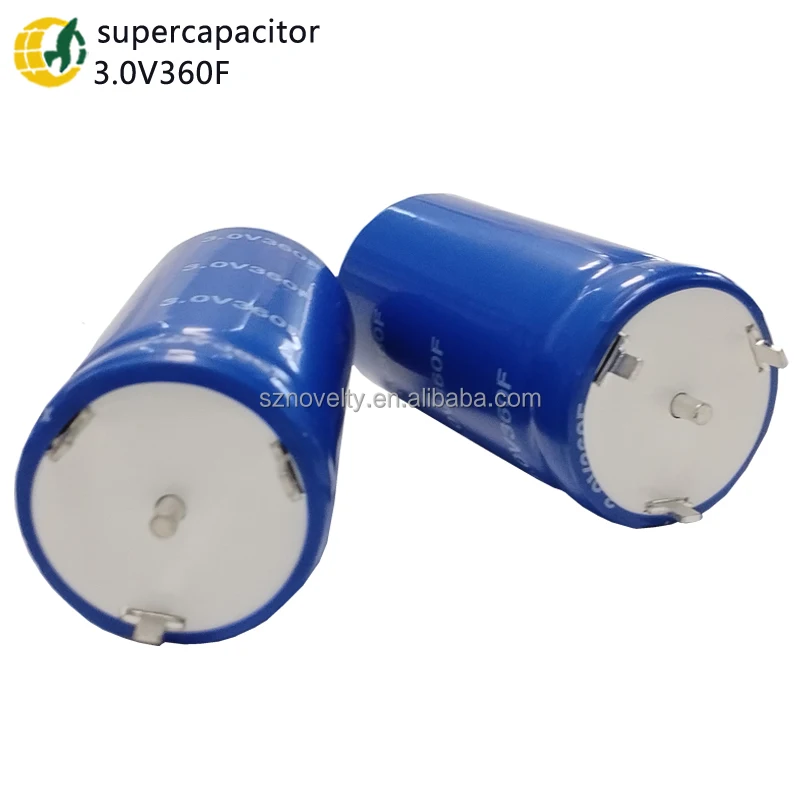

  • Cname:Super capacitor module
  • Views:Times
  • Release date:2024-01-08 15:20:26
  • Content
  • Features
  • Parameter


Product Introduction:

        Supercapacitors, also known as Faraday capacitors or double layer capacitors, are a new type of energy storage capacitor with high energy storage density and the ability to quickly charge and discharge. They are situated between traditional capacitors and rechargeable batteries, and therefore have the ability to store charges in chemical batteries. At the same time, they also have the discharge power of traditional capacitors. However, the discharge power of supercapacitors is higher than that of traditional capacitors.

Specification

itemvalue
Model Number3.0V360F
TypePower capacitor
Place of OriginChina

Guangdong
Brand NameYKY
Supplier TypeOriginal manufacturer, ODM, Agency, Retailer
Capacitance
Media Availabledatasheet, Photo
Tolerance-10%~+30%
Package TypeThrough Hole
Rated Voltage3V
Operating Temperature-40 ℃~ +65 ℃
SpecificationSIDE MOUNT
Voltage - Rated3V
ESR (Equivalent Series Resistance)1.1 mΩ
Applicationst Electronic cigarettes, Electric tools, Electric bikes
Impedance1. 9 mΩ
Circuit TypeBussed
Temperature Coefficient-40 ℃~ +65 ℃
Current - LeakageNONE
Voltage - BreakdownNot Applicable
Capacitance Range3.0V360F
ApplicationPower
power density6112 W/kg
Energy Density4.83 Wh/kg
Maximum stored energy0.45 _ wh
Maximum peak current320.60 A
Maximum working current ( T=15 ℃ )37.30 A
Maximum Leakage Current (72hrs)1. 0mA
Voltage hold (25 ℃, 24hrs)≥ 80%
Nominal capacity (C)36 0 f
Maximum equivalent DC internal resistance, R AC ( initial value )1.1 mΩ
Maximum equivalent DC internal resistance, R DC ( initial value )1. 9 mΩ
