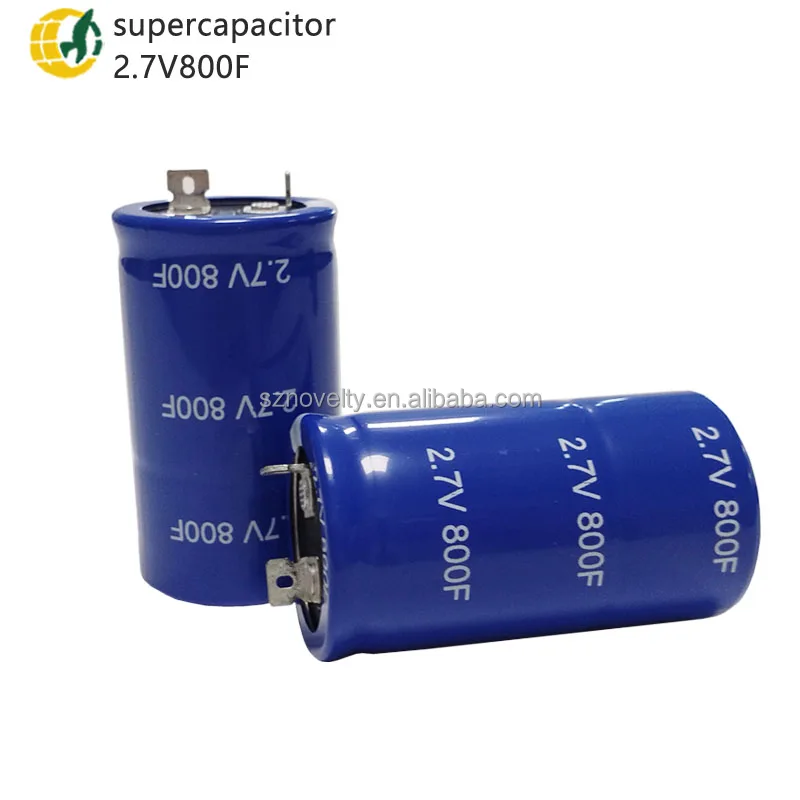

Graphene supercapacitors

Graphene supercapacitors

  • Cname:Super capacitor
  • Views:Times
  • Release date:2024-01-08 16:05:30
  • Content
  • Features
  • Parameter


Product Introduction:

        Graphene supercapacitors, also known as Faraday capacitors or double layer capacitors, are a new type of energy storage capacitor with high energy storage density and fast charging and discharging capabilities. They are situated between traditional capacitors and charging, and therefore have the ability to store chemical battery charges. At the same time, they also have the discharge power of traditional capacitors. However, the discharge power of supercapacitors is higher than that of traditional capacitors.

Specification

itemvalue
Model Number2.7V800F
TypeSuper Capacitor
Place of OriginChina

Guangdong
Brand NameYKY
D/C
Supplier TypeOriginal manufacturer, ODM, Agency, Retailer
Capacitance800F
Media Availabledatasheet, Photo
ToleranceNONE
Package TypeThrough Hole
Rated Voltage2.7V
Operating Temperature-40~70℃
SpecificationSIDE MOUNT
Voltage - Rated2.7V
ESR (Equivalent Series Resistance)5mΩ
ApplicationsElectronic cigarettes, tools, bike
Impedance5mΩ
Circuit TypeNot Applicable
Temperature Coefficient-40~70℃
Current - LeakageNONE
Voltage - BreakdownNot Applicable
Capacitance Range800F
ApplicationConsumer electronics, wind turbines, smart grids
range of working temperature-40~+70 ℃
Rated working voltage2.7V
surge voltage3.0V
Rated Capacity80 0 F
tolerance range0~+30%
rated current300A
peak current500A _
short circuit current1000A _
leakage current≤ 1.3mA
store energy1.7 5 Wh

Product Display
