Solar system supercapacitors

Solar system supercapacitors

  • Cname:Super capacitor module
  • Views:Times
  • Release date:2024-03-06 15:38:44
  • Content
  • Features
  • Parameter


Product Introduction:

         Solar energy system supercapacitors, also known as double-layer capacitors, gold capacitors, or Faraday capacitors, store energy through polarized electrolytes. They are electrochemical components, but do not undergo chemical reactions during their energy storage process. This energy storage process is reversible, and it is precisely because this supercapacitor can charge and discharge hundreds of thousands of times repeatedly. At the same time, supercapacitors are a new type of green and environmentally friendly energy storage device (activated carbon), It has superior characteristics such as high efficiency, high current capacity, wide voltage range, wide temperature range, long service life of rewinding, long working life, maintenance free, easy integration, and low cost.

Specification
itemvalue
Battery TypeLithium Ion
Model Number110V27.5AH 3KW
Brand NameYKY
Place of OriginChina

Guangdong

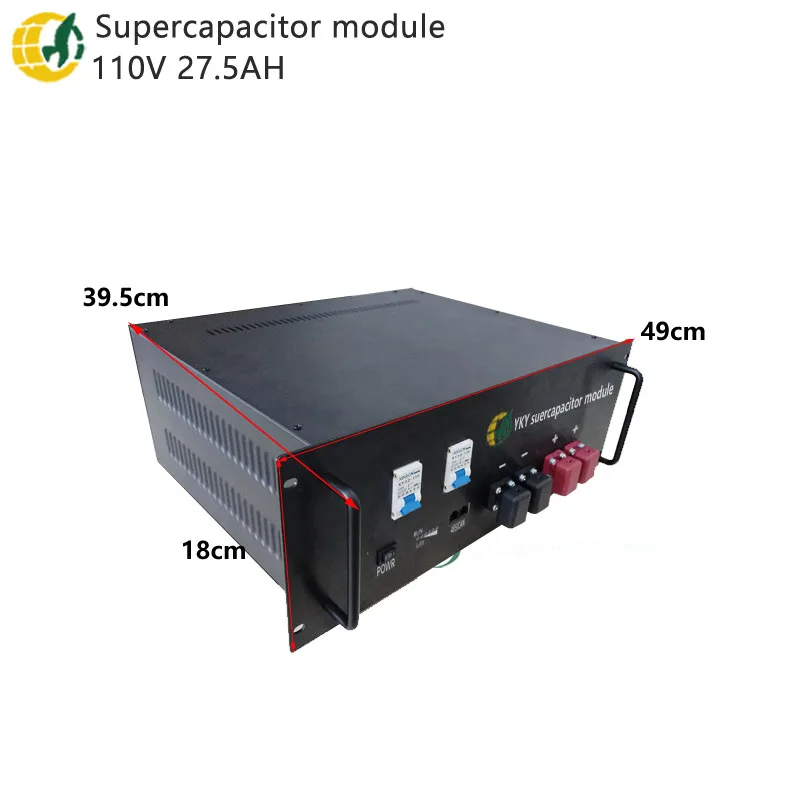

Dimension (L*W*H)48.5X39.5X18
Weight28KG
Communication PortRS485
Protection ClassIP54
Grid connectionOff grid
CoolingAir Cooling
Capacity27.5AH
Internal resistance (AC@1KHz 50% SOC)<30mΩ
Voltage Range70V - 117V

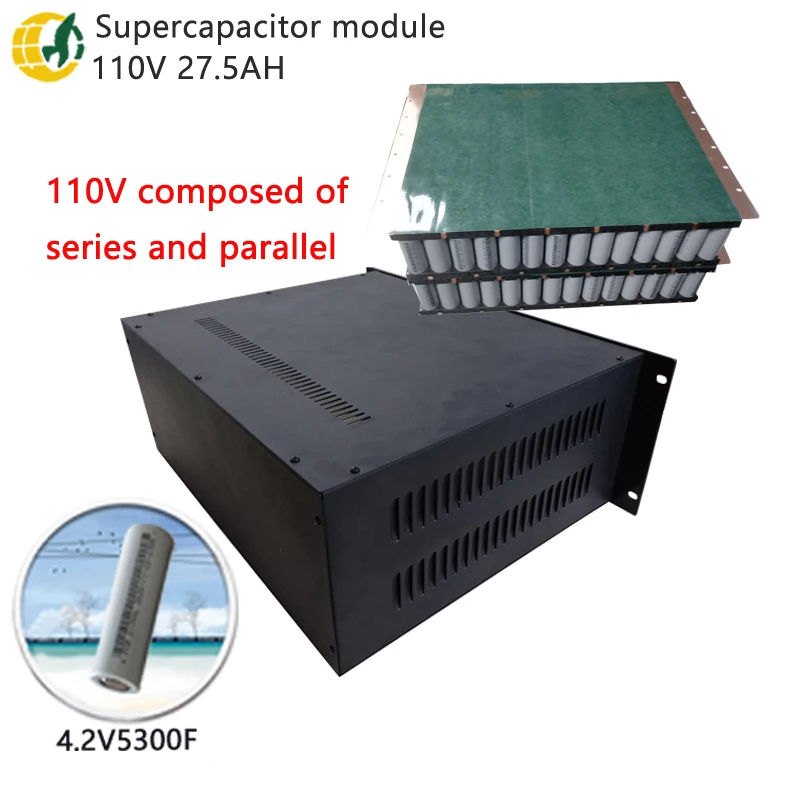

Modular way28S11P
SIZE48.5X39.5X18
Weight28kg
Working Temperature-40~85℃
cycle life30000 to 50000
Maximum Continuous Charge Current275A(10C)
Maximum continuous discharge current275A(10C)
