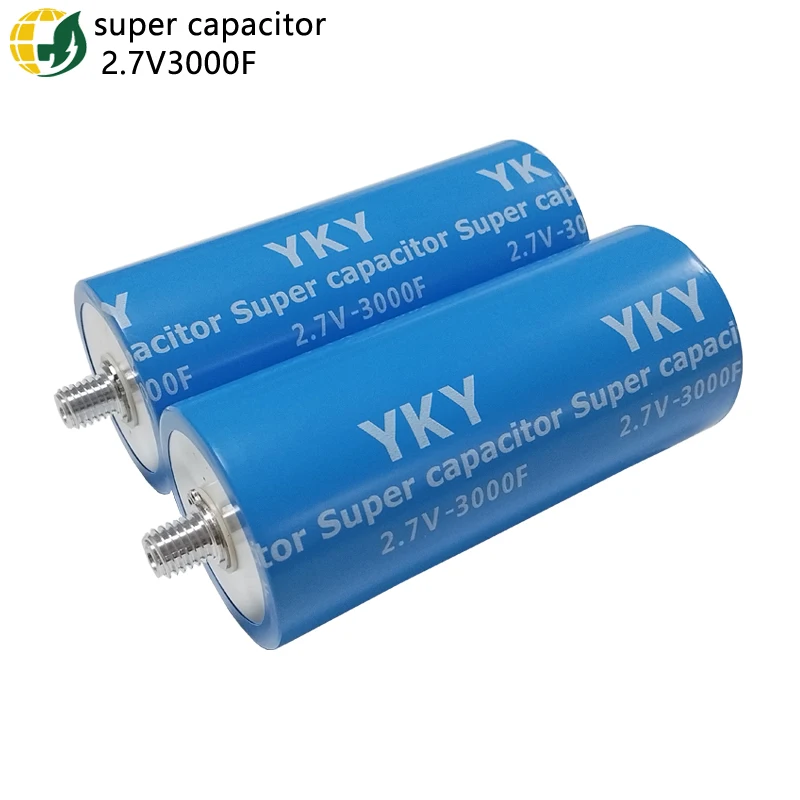

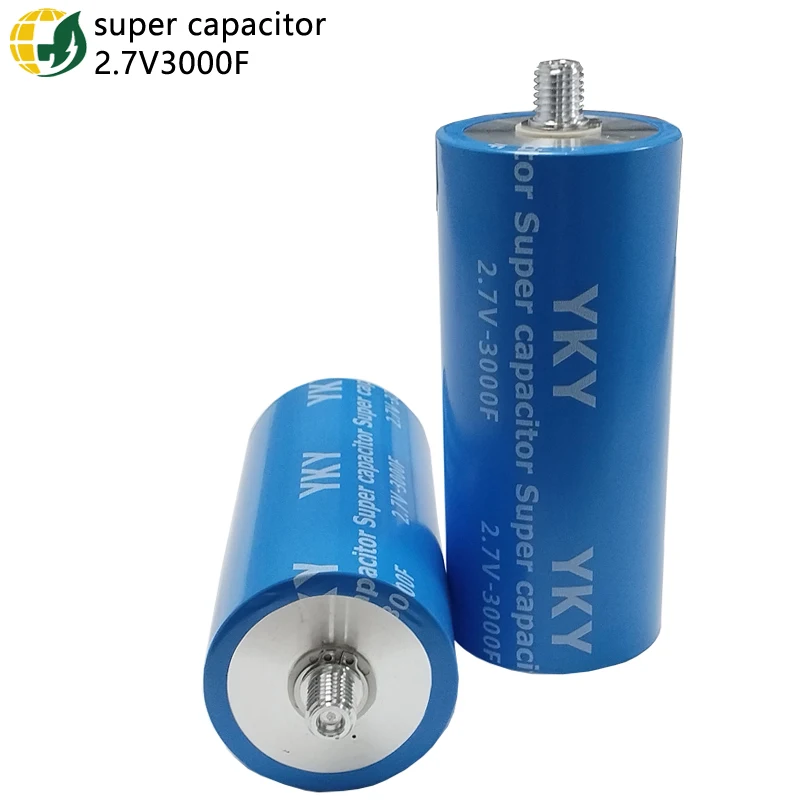

Threaded supercapacitor

Threaded supercapacitor

  • Cname:Super capacitor
  • Views:Times
  • Release date:2024-01-16 09:40:15
  • Content
  • Features
  • Parameter


Product Introduction:

        Supercapacitors (electrochemical devices that store energy through polarized electrolytes) generally refer to double layer capacitors, which are a type of supercapacitor and a new type of energy storage device.

Double layer capacitors are between batteries and capacitors, and their enormous capacity can be used as batteries. Compared to using electrochemical principles, double-layer capacitors do not involve any material changes during their charging and discharging processes. Therefore, they have the characteristics of short charging time, long service life, good temperature characteristics, energy conservation, and green environmental protection.

Product specifications:

itemvalue
Place of OriginChina

Guangdong
Brand NameYKY
Model Number2.7V3000F
Specification2.7V3000F

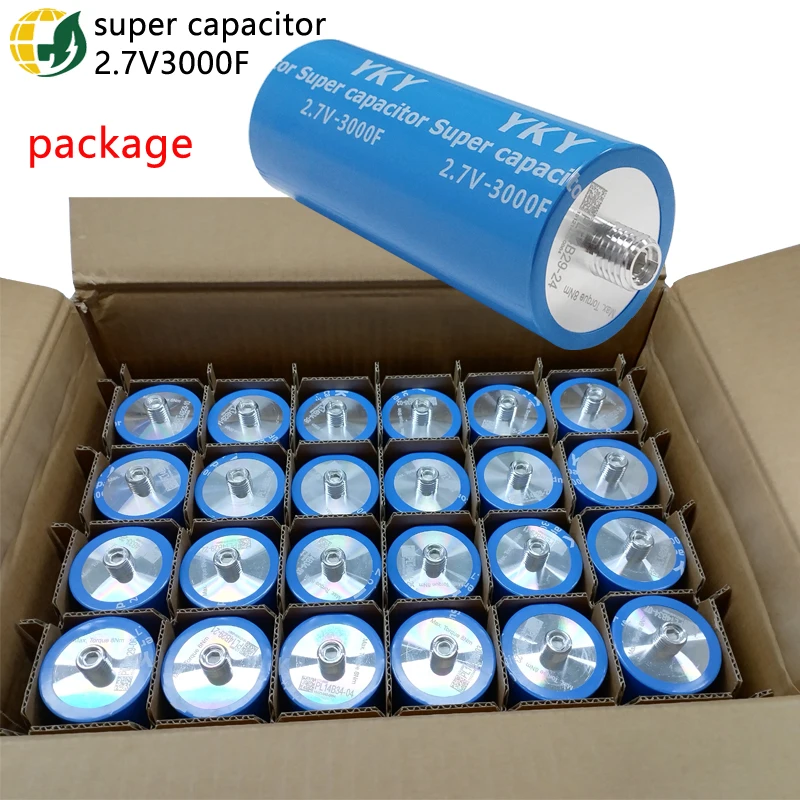

Packaging TypeSeparate packaging
ApplicationStart and stop system
Series
FeaturesFast charge and discharge

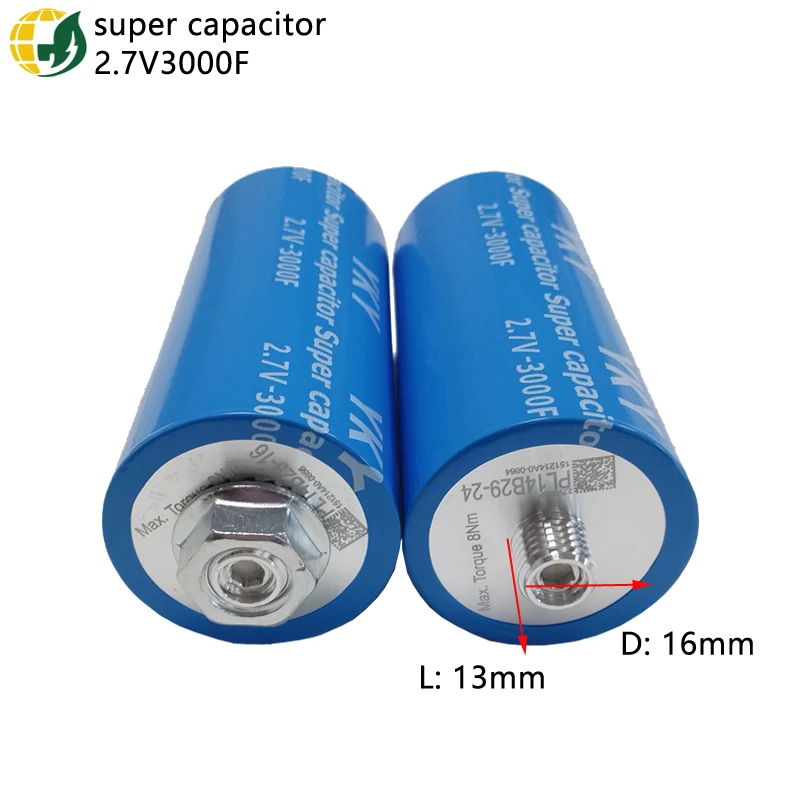

Size / Dimension14x6 cm
Descriptiondouble-layer super capacitor
Capacitance2.7V3000F
range of working temperature-40~+70 ℃
AC internal resistance≤ 0.20mΩ
DC internal resistance≤ 0.27mΩ
rated current2000A _
peak current3000A
short circuit current5000A _
leakage current≤ 1.3mA
cycle life10 00,000 cycles
self-discharge≥ 2.4V
Energy Density5.56 Wh/kg
